View Manual: Application Stakeholder Model

To inform stakeholders of the different kind of people actors (internal and external) that will interact with the applications of the enterprise.

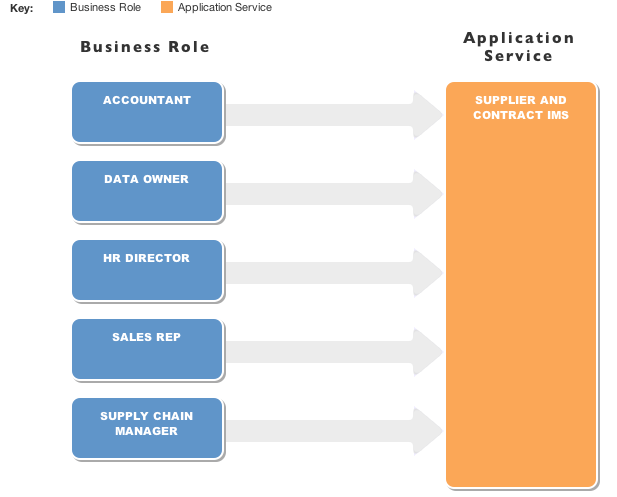

A model that defines the interaction between applications and users.

Guidelines for the modelling requirements

• Name and Description must be completed for all classes shown
• If no additional slots are indicated, then just name and description are required
• Mandatory slots are shown in red, these are required for the view to work
• Mandatory slots with an option, i.e. Individual Role OR Group Role, are shown in green, these are required for the view to work
• Optional slots are shown in black. The report will work without these but there may be some blank fields.
• The "classified as" slot is automatically completed except where noted

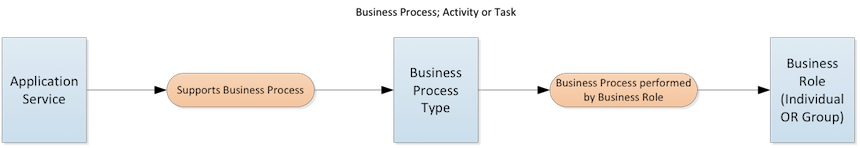

Top Level

Navigation	Essential Class	Additional Slots
Application/Logical	Application Service	Supports Business Processes
Business/Logical	Business Process Type - Business Process; Task; Activity	Business Process performed by Business Role
Business/Logical	Business Role - Individual OR Group
