View Manual: Technology Reference and Standards Model
View Purpose
To inform stakeholders regarding the major kinds of technologies and standards that
are needed as a common infrastructure to enable the integration, execution, distribution
and management of Information management systems (data and applications) of an enterprise.
View Description
A model that defines the major classes of technology components/services (infrastructure
software, hardware, and network) and the interoperability standards associated thereto.
Top Level Meta-Model
Drill Down Meta-Model
Modelling Requirements
Guidelines for the modelling requirements
- Name and Description must be completed for all classes shown
- If no additional slots are indicated, then just name and description are required
- Mandatory slots are shown in red, these are required for the view to work
- Mandatory slots with an option, i.e. Individual Role OR Group Role, are shown in green, these are required for the view to work
- Optional slots are shown in black. The report will work without these but there may be some blank fields.
- The "classified as" slot is automatically completed except where noted
Top Level
| Navigation | Essential Class | Additional Slots |
|---|---|---|
| Technology/Conceptual | Technology Capability | Classified as (See Note) |
| Technology /Logical | Technology Component | Realisation of Technology Capability (See Note) |
Drill Down
| Navigation | Essential Class | Additional Slots |
|---|---|---|
| Technology/Logical | Technology Component | Realised by Technology Products |
| Technology/Logical | Technology Provider - Technology Product | Implements Technology Components |

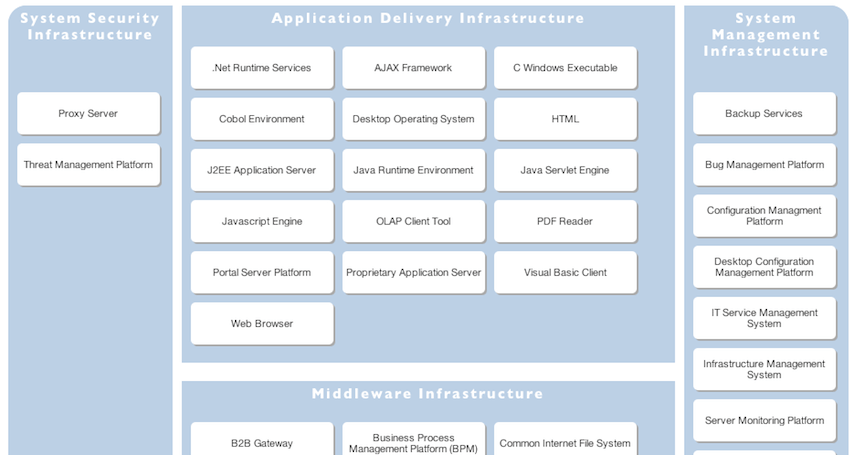

Screenshot
