View Manual: Technology Roadmap Model
View Purpose
To inform stakeholders regarding the major Technology initiatives (or project) to
be undertaken by the enterprise to address the deficiencies and redundancies as identified
during the prior gap analysis.
View Description
A Technology Architecture Roadmap which outlines a list of individual increments of
change over a timeline to show progression from the Baseline Architecture to the Target
Architecture.
Meta-Model
Modelling Requirements
Guidelines for the modelling requirements
- Name and Description must be completed for all classes shown
- If no additional slots are indicated, then just name and description are required
- Mandatory slots are shown in red, these are required for the view to work
- Mandatory slots with an option, i.e. Individual Role OR Group Role, are shown in green, these are required for the view to work
- Optional slots are shown in black. The report will work without these but there may be some blank fields.
- The "classified as" slot is automatically completed except where noted
Top Level
| Navigation | Essential Class | Additional Slots | Notes |
|---|---|---|---|
| EA Support/ Strategy Management | Application/ Technology Strategic Plans | Strategic Plan for Elements (See Note 1) | Populate with Architecture elements as required:- •Technology Component •Technology Composite •Technology Component Architecture •Technology Component Usage •Technology Instance •:TCU-TO-TCU-RELATION •Application Provider |
| Strategic Planning Action | |||
| Strategic Plan Valid From | |||
| Strategic Plan Valid To | |||
| Depends On Strategic Plans | Required if replacing one element with another i.e. the plan to remove a Site is dependent on the creation of another. | ||
| EA Support/ Strategy Management | Roadmap Model (See Note 2) | Start | |
| Milestone | Require at least one for each for a baseline and target architecture. | ||
| Roadmap Relations | Double click on lines between milestones and populate supporting strategic plans field with previously defined strategic plans | ||
| EA Support/ Strategy Management | Roadmap Milestone (See Note 3) | Display Label | |
| Milestone Architecture State | |||
| EA Support/ Strategy Management | Timeline Point | Display Label | |
| Time Point | |||
| EA Support/ Strategy Management | Architecture State (See Note 3) | State Valid From Date | |
| State Valid To Date | |||
| Architecture Elements (See Note 1) | Populated with elements from the list in the notes section of Strategic Plan class on slide 6. | ||
| Business/Conceptual | Business Objectives | ||
| Information/ Conceptual | Information Architecture Objectives | ||
| Application/ Conceptual | Application Architecture Objectives | ||
| Technology/ Conceptual | Technology Architecture Objectives |

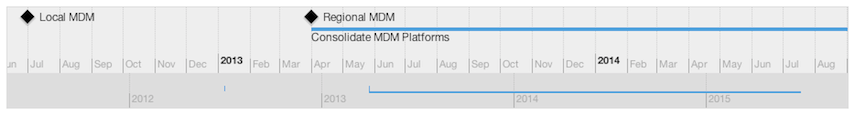

Screenshot
