View Manual: Business Change Analysis - Organisation Performance Gap

To inform stakeholders regarding the extent of change that is required to move the business from the baseline state to the target state.

A model that indicates the deficiencies and opportunities for improvement that is derived from a comparison between the Baseline Business Architecture models and the Target Business Architecture models. This view focuses on Organisation Performance Gaps - a change in drivers, objectives or measures.

Guidelines for the modelling requirements

• Name and Description must be completed for all classes shown
• If no additional slots are indicated, then just name and description are required
• Mandatory slots are shown in red, these are required for the view to work
• Mandatory slots with an option, i.e. Individual Role OR Group Role, are shown in green, these are required for the view to work
• Optional slots are shown in black. The report will work without these but there may be some blank fields.
• The "classified as" slot is automatically completed except where noted

Top Level

Navigation	Essential Class	Additional Slots	Notes
Business/Conceptual	Business Driver	Motivated by Objectives
		Classified as	Select the correct Driver Classification, i.e. Gap
Business/Conceptual	Business Objective	Supported by Objectives
		Supported by Strategic Plans
		Motivated by Drivers
		Classified as	Select the correct Objective Classification, i.e. Company
EA Support/ Strategy Management	Business Strategic Plan	Strategic Plan for Elements	Populate with Business Drivers and Business Objectives
		Strategic Planning Action
		Strategic Plan Valid From
		Strategic Plan Valid To
		Depends On Strategic Plans	Required if replacing one element with another i.e. the plan to remove an Objective is dependent on the creation of another.
		Supports Objectives
EA Support/ Strategy Management	Roadmap Model (See Note 1 and 2)	Start
		Milestone	Require at least one for each for a baseline and target architecture.
		Roadmap Relations	Double click on lines between milestones and populate supporting strategic plans field with previously defined business strategic plans
EA Support/ Strategy Management	Roadmap Milestone (See Note 2)	Display Label
		Milestone Architecture State
EA Support/ Strategy Management	Architecture State (See Note 2)	State Valid From Date
		State Valid To Date
		Business Conceptual Elements	Populated with Business Drivers
Information/ Conceptual	Information Architecture Objective
Application/ Conceptual	Application Architecture Objective
Technology/ Conceptual	Technology Architecture Objective

Note 1

You need to define the Roadmap Model. Do this by:-

• Dragging the Milestone and Timeline Point boxes onto the diagram.
• Double click to add the Milestone and Timeline Point details (don’t forget to give them a display label name).
• Add the Roadmap Relationships by clicking and dragging from one milestone to another.
• Now double click on the arrows between the milestones and populate the ‘Supporting Strategic Plans’ field with the previously defined Business Strategic Plans.

Note 2

These items should be re-used , ie created only once for all Business Gap Reports. The Business Roadmap should be created first and the Report Constant set up as detailed in the Business Roadmap View Manual.

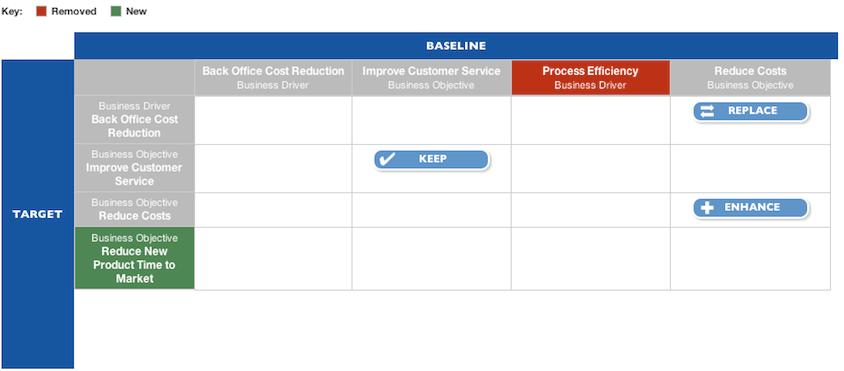

The Gap Reports have a number of icons and colours to describe the type of change occuring between architecture states as shown in the example view on the following page. These are automatically set by the information that is entered in the Strategic plan.

The Planning Action Legends, i.e. keep, enhance, replace are set as follows:

Keep

• Requires Elements in both the baseline and target architecture states
• No strategic plans

Enhance

• Requires Elements in both the baseline and target architecture states
• Requires a strategic plan whose planning action status is set to Enhance.

Replace

• Requires Elements that have a strategic plan whose planning action is set to Decommission in the Baseline and Replace in the Target.
• The target strategic plans must be set to support the baseline strategic plan.

The Element Colours, red, green and grey are set as follows:-

Red

• These represent elements that are being decommissioned and will, therefore, only appear in the Baseline State. The Strategic Plan must have a strategic planning action set to “Switch Off”

Green

• These represent new elements and will, therefore, only appear in the Target State. The Strategic Plan must have a planning action set to “Establish”

Grey

• The change is determined by the legends, i.e. enhance or replace. Note, replace is not always red as the element may be replaced for this solution but still exist in the enterprise.

---
